Description

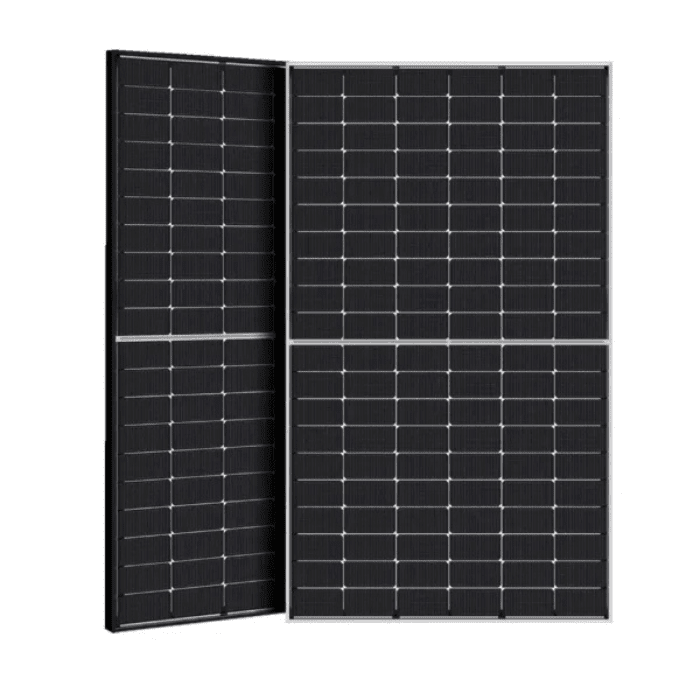

A “Yingli Solar 715 W” panel (if produced) would be a high‑power, N‑type TOPCon bifacial module — part of the PANDA 3.0 series — delivering up to ≈ 715 watts under standard test conditions. With high module efficiency (~23 %), dual‑glass / bifacial design, and robust build quality, it would be ideal for large‑scale, high‑capacity solar installations where maximizing power per panel and minimizing panel count is important.
-
Brand & Series: The panel belongs to Yingli Solar’s “PANDA 3.0 Plus / CF66 f/2” module family, which is listed with a “power range” from 695 Wp up to 720 Wp (i.e. 695, 700, 705, 710, 715, 720) in published datasheets.
-
Technology & Build: It uses N‑type monocrystalline cells with advanced cell architecture (likely TOPCon or equivalent) and a bifacial, dual‑glass design. The frame is anodized aluminum; junction box is listed as IP68 for environmental protection.
-
Theoretical Electrical Specs (for the 715 Wp “top” in the datasheet):
-
Maximum power (Pmax): 715 W
-
Voltage at max power (Vmpp): ~ 41.00 V
-
Current at max power (Impp): ~ 17.44 A
-
Open-circuit voltage (Voc): ~ 48.7 V
-
Short-circuit current (Isc): ~ 18.42 A
-
Module efficiency (catalog): ~ 23.0%
-
Operating Conditions & Durability: According to datasheet, operating temperature range from –40 °C to +85 °C, temperature coefficient for Pmax ≈ –0.29%/°C — important for performance in hot climates. The robust dual‑glass construction and aluminum frame aim to provide durability and resistance to environmental stress, dust, humidity etc.
-
-
Warranty / Degradation Promise: The datasheet indicates a limited product warranty (commonly 12 years) and a power warranty guaranteeing performance over 25–30 years (e.g. output stays above a defined percentage, as per module degradation curve).
