Description

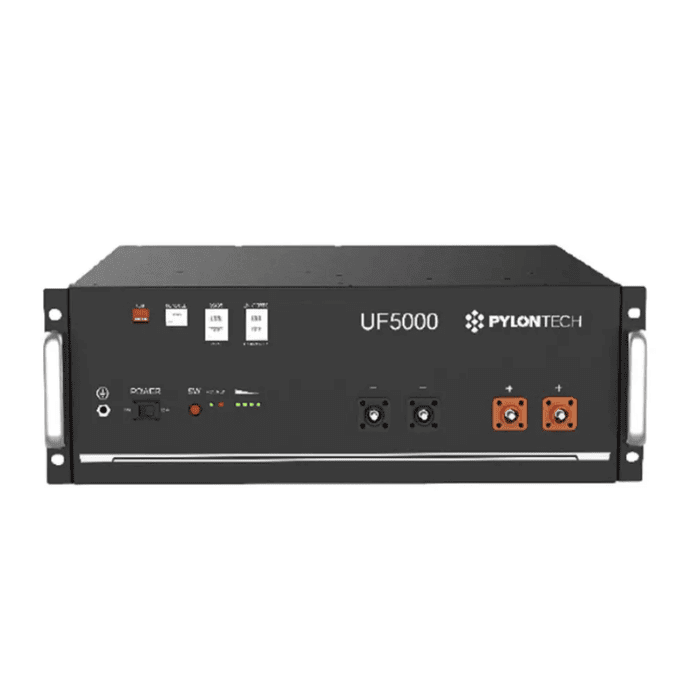

The Pylontech UF5000 is a 5.12 kWh Lithium Iron Phosphate (LiFePO₄) battery module designed for residential, commercial, and industrial energy storage applications. With a modular design, it offers scalability, high energy efficiency, and compatibility with various hybrid inverters, making it ideal for solar energy systems, backup power, and off-grid installations.
Key Features & Specifications
-
Battery Type: Lithium Iron Phosphate (LiFePO₄)
-
Nominal Voltage: 51.2V
-
Capacity: 100Ah (5.12 kWh)
-
Usable Capacity: 4.864 kWh
-
Depth of Discharge (DoD): 95%
-
Cycle Life:
6,000 cycles at 25°C
-
Design Life: 15 years at 25°C
-
Charge/Discharge Current:
-
Recommended: 100A
-
Maximum Continuous: 100A
-
Peak (15 min): 105–109A
-
Peak (15 sec): 120–200A
-
-
Operating Voltage Range: 45.6V to 56.8V
-
Charge Voltage: 56.0V to 56.8V
-
Communication Interfaces: RS485, CAN
-
Scalability: Up to 20 units in parallel
-
Operating Temperature: -10°C to 55°C
-
Storage Temperature: -20°C to 60°C
-
Protection Rating: IP20 (Indoor use)
-
Dimensions: 442 × 452.6 × 161 mm
-
Weight: Approximately 42 kg
-
Certifications: IEC62619, UN38.3, RoHS, Reach, WEEE, MSDS
