Description

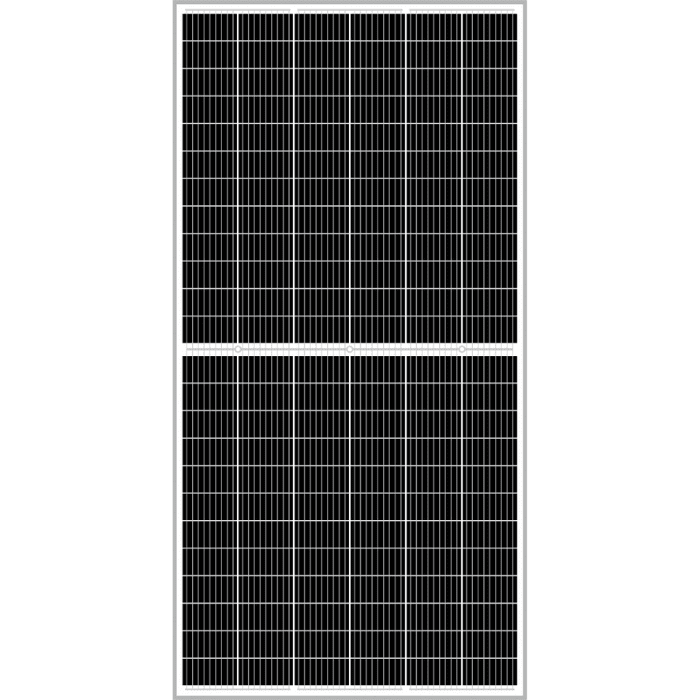

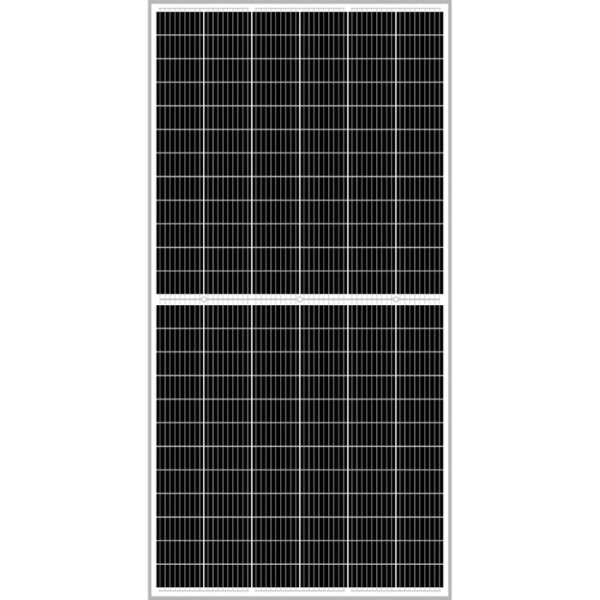

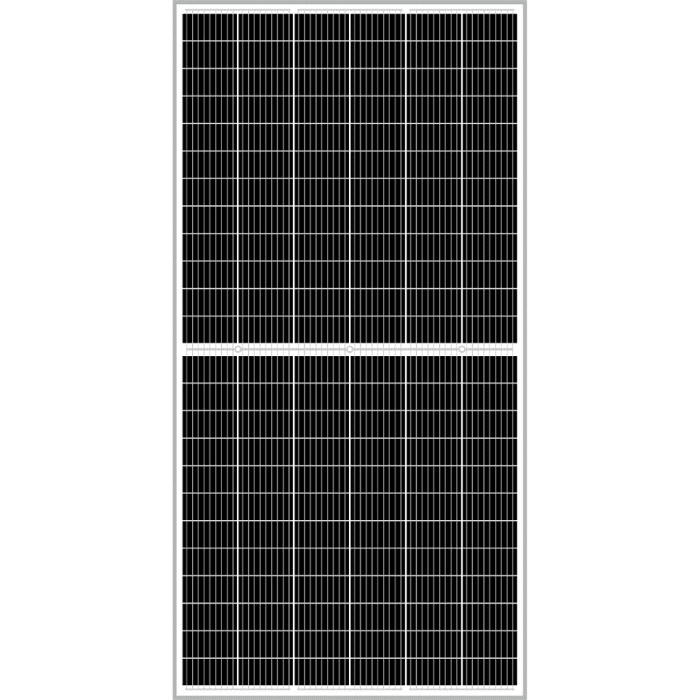

The Jinko 705W Tiger Neo N-Type Bifacial Solar Panel (Model: 66HL5-BDV) is engineered for superior performance in utility-scale and commercial solar installations. Utilizing advanced N-type TOPCon (Tunnel Oxide Passivated Contact) technology, this panel achieves a remarkable efficiency of up to 23.2%, ensuring maximum energy yield.
Its bifacial dual-glass construction allows the panel to absorb sunlight from both the front and rear sides, increasing overall energy generation, especially when installed over reflective surfaces. The robust design includes a 2.0mm anti-reflective coated front glass and a 2.0mm heat-strengthened back glass, providing enhanced durability and resistance to environmental factors.
Key Specifications:
-
Power Output: 705W
-
Efficiency: Up to 23.2%
-
Cell Type: N-type monocrystalline, 132 cells (66×2)
-
Dimensions: 2384 × 1303 × 33 mm
-
Weight: 37.5 kg
-
Junction Box: IP68 rated
-
Certifications: TUV, CE
The panel’s design ensures high performance even in low-light conditions and offers excellent temperature coefficient characteristics, making it suitable for diverse climatic environments. With a 25-year product warranty and a 30-year performance warranty, the Jinko 705W panel promises long-term reliability and energy savings.
