Description

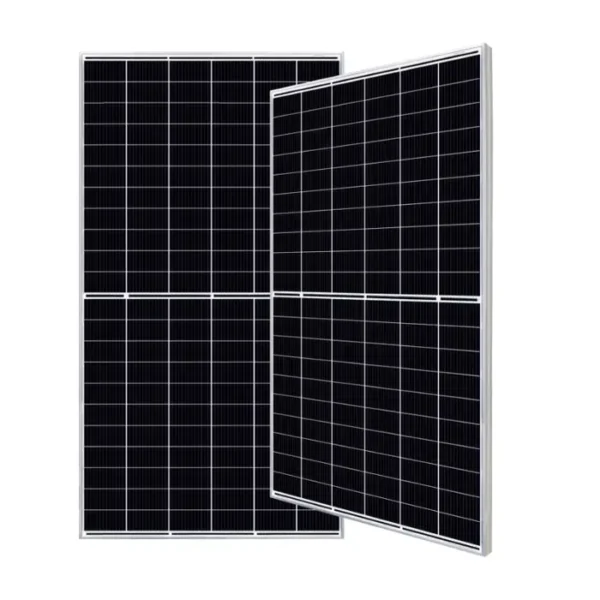

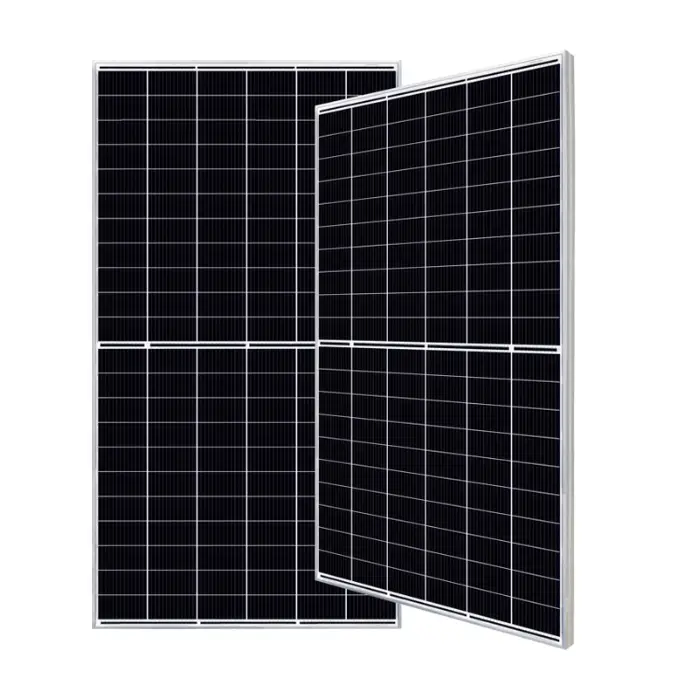

JA Solar 605W N-Type Bifacial Solar Panel
The JA Solar panel is a cutting-edge photovoltaic module designed for high-performance solar applications. Utilizing advanced N-type TOPCon cell technology, this bifacial double-glass module delivers exceptional efficiency and energy output, making it an excellent choice for utility-scale and commercial projects.
✅ Key Features:
-
High Power Output: Delivers up to 605W, enhancing overall system performance.
-
Advanced Cell Technology: N-type TOPCon cells provide higher efficiency and better temperature coefficients.
-
Bifacial Design: Double-glass construction captures sunlight from both front and rear sides, increasing energy yield.
-
Durability: Robust design ensures resistance against environmental factors, extending module lifespan.
-
Low Degradation: Exhibits very low Light-Induced Degradation (LID), maintaining performance over time.
-
Certifications: Complies with IEC 61215, IEC 61730, and other international standards.
📐 Technical Specifications:
-
Model: JAM72D42-605/LB
-
Rated Power (Pmax): 605W
-
Module Efficiency: Up to 22.5%
-
Cell Type: Monocrystalline N-type TOPCon, 144 half-cells (6×24)
-
Dimensions: 2465 mm × 1134 mm × 35 mm
-
Weight: 34.6 kg
-
Front/Back Glass: 2.0 mm tempered glass
-
Junction Box: IP68 rated, 3 diodes
-
Connector: MC4-EVO2 / QC 4.10-35
-
Cable Cross Section Size: 4 mm²
-
Operating Temperature Range: -40°C to +85°C
-
Maximum System Voltage: 1500 V DC
-
Warranty: 12-year product warranty; 30-year linear power output warranty
