Description

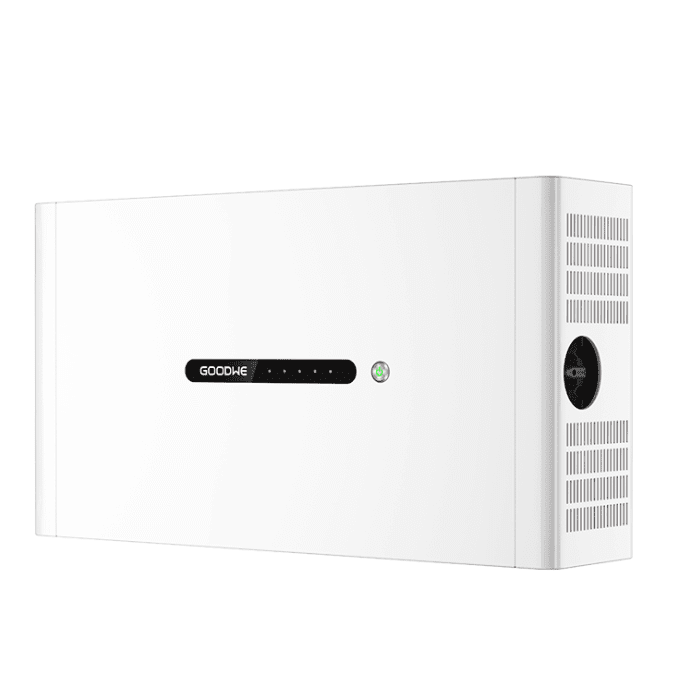

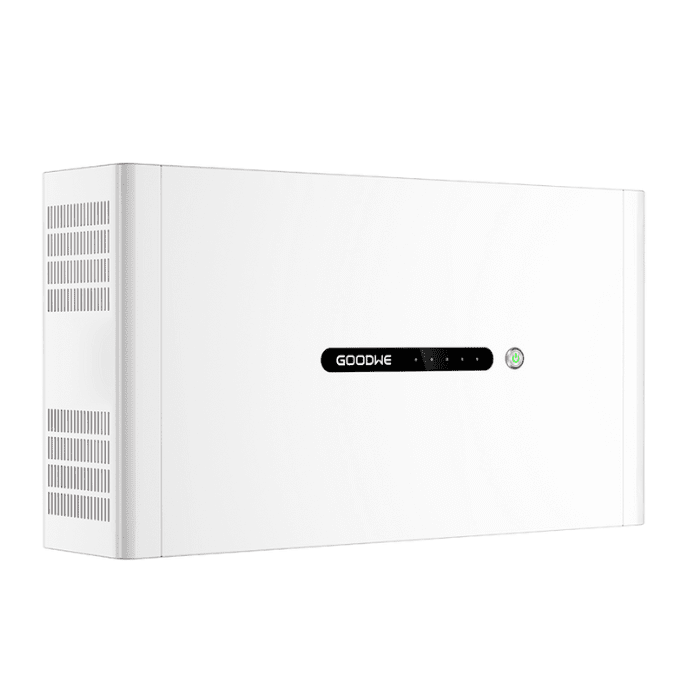

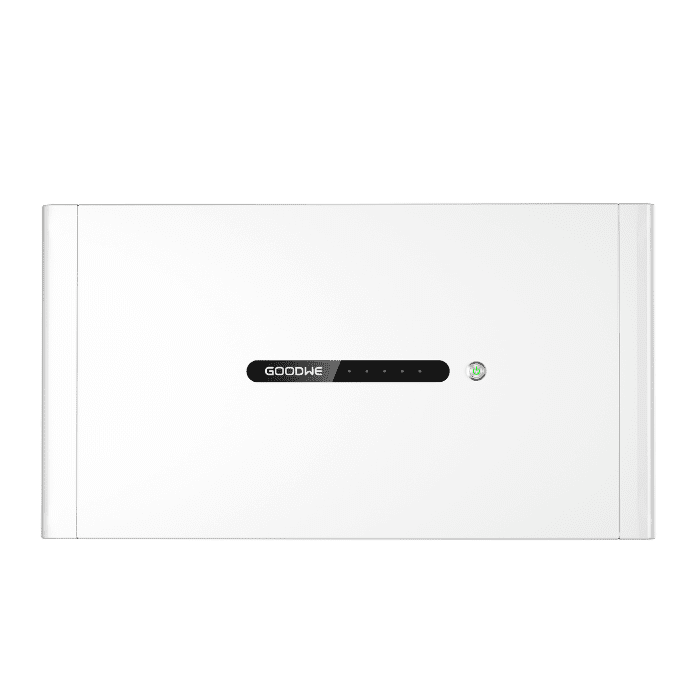

The GoodWe Lynx D Series (Model: LX D5.0-10) is a modular, high-voltage (HV) lithium-iron-phosphate (LiFePO₄) battery system tailored for home storage and backup applications. Each module offers 5 kWh of usable energy, making it ideal for residential solar systems aiming for energy self-consumption and reliable backup.
Designed for flexibility and future expansion, Lynx D modules can be stacked in parallel, and the system supports up to 8 modules (40 kWh) for larger energy needs. The modules are self-detecting and enable “mix-and-match” of old and new packs, making expansion or replacement smooth and cost-effective.
Safety and durability are central to this design:
-
Uses LFP chemistry which is inherently stable and safe.
-
The enclosure is rated IP66, protecting the unit from dust and heavy water exposure, which allows for more flexible installation (outdoor or semi-outdoor).
-
Built-in smart control includes remote diagnosis and firmware updates via the connected inverter, plus auto-reboot after undervoltage events.
In terms of performance:
-
Nominal continuous power: 3 kW
-
Peak power: 5 kW for 10 seconds, useful for handling high inrush loads.
-
Operating voltage: 320 V to 480 V at the output.
-
Temperature range: Charging from 0°C to +53°C, discharging from –20°C to +53°C.
For connectivity, the Lynx D uses CAN communication, making it compatible with GoodWe hybrid inverters and enabling system-level monitoring. The unit weighs around 52 kg, and its dimensions are 700 × 380 × 170 mm, suitable for either wall-mounted or floor-stacked installation.
