Description

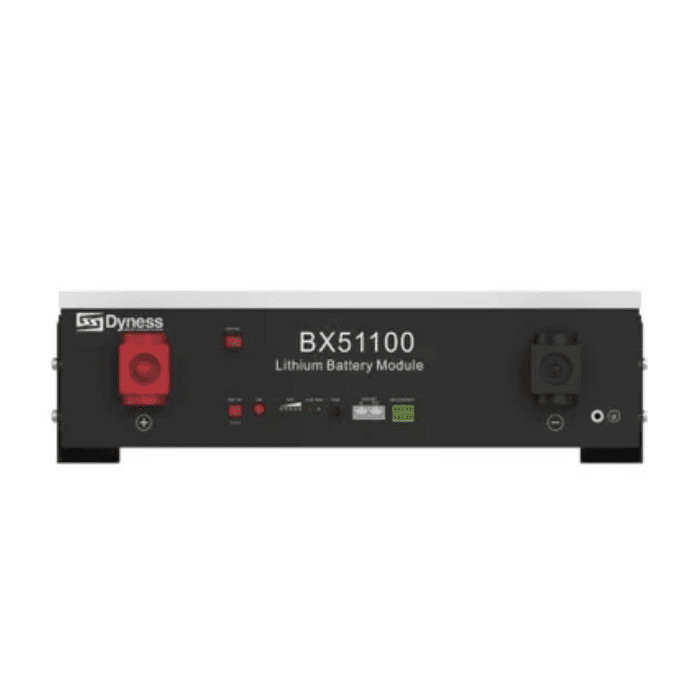

The Dyness BX51100 is a 5.12 kWh lithium iron phosphate (LiFePO₄) battery module designed for residential and light commercial energy storage applications. It offers scalability, safety, and compatibility with various inverter brands, making it suitable for both off-grid and hybrid solar systems.
Key Features
-
Battery Type: Lithium Iron Phosphate (LiFePO₄)
-
Nominal Energy: 5.12 kWh
-
Nominal Voltage: 51.2 V
-
Capacity: 100 Ah
-
Cycle Life: ≥6000 cycles at 90–95% Depth of Discharge (DoD)
-
Scalability: Up to 30 units in parallel (up to 153.6 kWh)
-
Charge/Discharge Current:
-
Recommended: 50 A
-
Maximum: 75 A
-
Peak (15s): 100 A
-
-
Operating Voltage Range: 44.8 V to 57.6 V
-
Temperature Range:
-
Charging: 0°C to 55°C
-
Discharging: -20°C to 55°C
-
-
Communication Interfaces: CAN, RS485, RS232
-
Protection Level: IP20
-
Dimensions: 558 × 545 × 150 mm
-
Weight: Approximately 50 kg
-
Certifications: UN38.3, CE-EMC, IEC62619, IEC60730, GOST-R
-
Warranty: 10 years
