Description

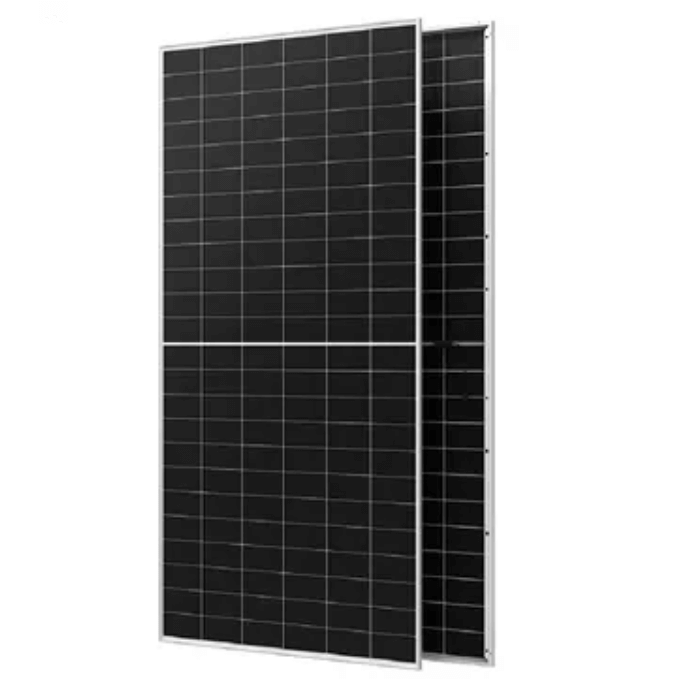

The Astro 610 W panel — part of the Astronergy “ASTRO N7” lineup — is a modern photovoltaic module engineered for high performance, durability, and versatility.

⚡ Key Performance & Technology

• Rated Power (Pmax): 610 W under standard test conditions (STC).

• Cell / Module Technology: N‑type monocrystalline silicon cells using TOPCon (or equivalent high‑efficiency) technology. Bifacial / Dual‑Glass Design: The panel is bifacial (glass–glass), meaning it can capture sunlight from both its front and back sides — increasing overall energy yield when rear‑side irradiation or ground reflection is available.

• Module Efficiency: Typically ~ 22.6% under STC (depending on exact variant).

• Electrical Characteristic (typical STC):

  • Vmpp ≈ 41.31 V, Impp ≈ 14.77 A

  • Voc ≈ 48.74 V, Isc ≈ 15.94 A

🏗️ Mechanical Build & Durabiliy

• Dimensions: ~ 2382 × 1134 × 30 mm (typical for the N7 series)

• Weight: ~ 33.5 kg for classic 610 W variant with 132 cells; there are also large‑format variants (156‑cell, 2465 × 1134 mm, ~34.7 kg) depending on sub-model.Glass & Frame: Dual tempered glass (front + back), aluminum alloy anodized frame — built to handle environmental stress.

• Mechanical Load / Weather Resistance: Rated for high mechanical stress — e.g. ~5400 Pa front‑side load, ~2400 Pa rear load (wind, snow, etc.) — making it suitable for varied climates and conditions.

🔋 Real‑World Benefits & Use Cases

• Because of its high watt‑per‑panel output, fewer panels are needed to reach a desired total system capacity — reducing mounting, wiring, and installation costs per watt.

• The bifacial design increases energy yield potential, especially in installations with reflective ground surfaces or where rear‑side light exposure is possible.

• The N‑type TOPCon cells offer improved low‑light performance, lower degradation, and better long‑term output stability compared with older panel types — which is especially useful in climates with variable sunlight or dust/heat (e.g. many areas in Pakistan).

• With its robust build, the panel is suited for residential rooftops, commercial buildings, and utility‑scale solar farms alike — giving flexibility depending on your project size.

✅ Warranty & Lifespan

The panel comes with a standard product warranty (often ~15 years) and a long-term output (power) warranty — many datasheets show typical degradation ≤ 1.0% in the first year and ≤ 0.4% per year afterwards, giving long‑term reliability and stable output over decades.
